ZW Series 300mw*6 Moving Head Bar Stage Light Laser Beam

  • ZW series laser show machines 1000mw *6 RGB moving head laser is the high-performance stage laser lights which equipped with High precision stepper motor scanning system, the Y-axis swings 180 degrees and the X-axis laser head can swing.
  • ZW series club laser lights could be controlled by DMX, sound active, autorun, and master-slave, which are easy for the user to operate. The solution for Nightclub, bars, DJ bars, disco bars, TV Show, stage shows, etc.
  • Newfeel ZW Series club laser source: semiconductor pumped; Modulation signal: TTL modulation; Laser wavelength: 635nm.
  • The ZW Dmx laser power: RGB1000mw*6pcs; Laser: Red/Green/Blue; High precision stepper motor scanning system, the Y-axis swings 180 degrees and the X-axis laser head can swing.
  • Our New ZW Series professional laser light effect: Laser Sky beam performance, laser streamline effect, laser strobe effect, LED beam sensation, water strobe, etc.Control mode: DMX512; sound active; autorun, Master/slave.
  • ZW series professional laser lights applications: bars, KTV, performing arts, disco, clubs, television stations, advertising promotion dance halls, hotel banquet halls, entertainment venues, etc.
$680.00
Model: ZR650 (Red 500mw)
ZR650 (Red 500mw)
ZG609 (Green 80mw)
ZB650 (Blue 500mw)
ZW630 (RGB 300mw)
ZW6200 (RGB 2000mw)
Ask a question Share
Product Manuals
OEM & ODM
Hassle-Free Warranty
Lifetime Customer Support
Guaranteed Safe Checkout
  • PayPal
* You need to pay customs duties when importing goods. Learn More shipping policy
  • Description
  • Specs
  • Faq
  • Reviews
Item No. ZR650 ZG609 ZB650 ZW630 ZW6200
Red Laser R500mw / / R300mw R2000mw
Green Laser / G80mw/520nm / G300mw G2000mw
Blue Laser / / B500mw/450nm B300mw B2000mw
Scanning system / / / / /
ZW Series laser
Newfeel ZW Series laser moving head bar is a brand new RGB300mw*6 or R500mw*6 or G80mw*6 or B1000mw*6, 3R-class 6-hole RGB moving head laser stage light, which can create stunning red, green and blue fat beam laser displays in DMX, auto or sound activation mode.
Features include micro-step wide-angle scanning, a 4-key control panel with LED display, and a 3-pin DMX input/output connection.

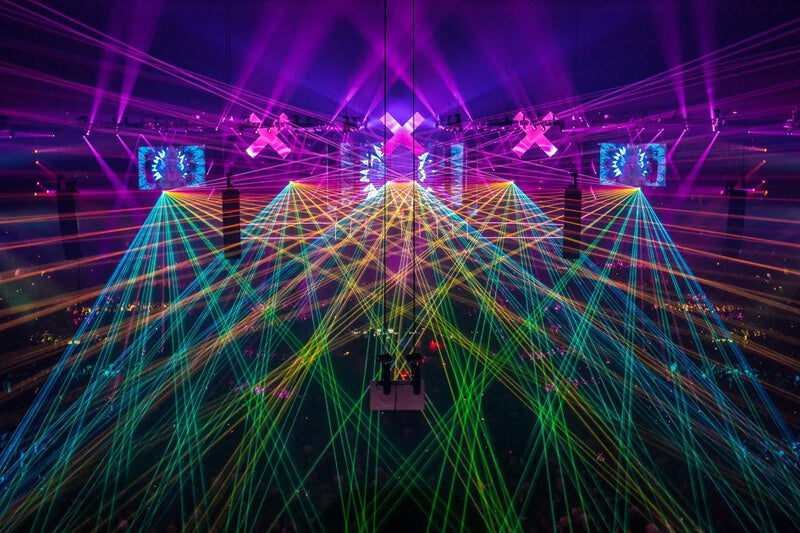

newfeel-zw-img2_6

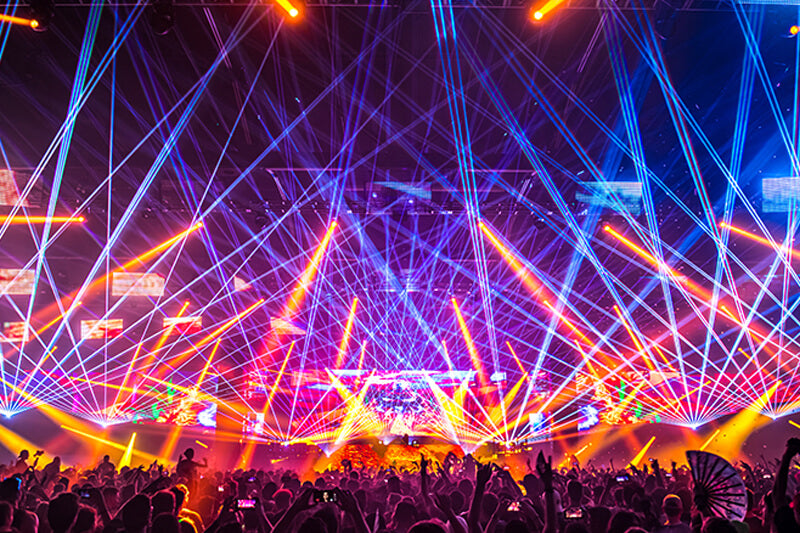

newfeel-zw-img2_5

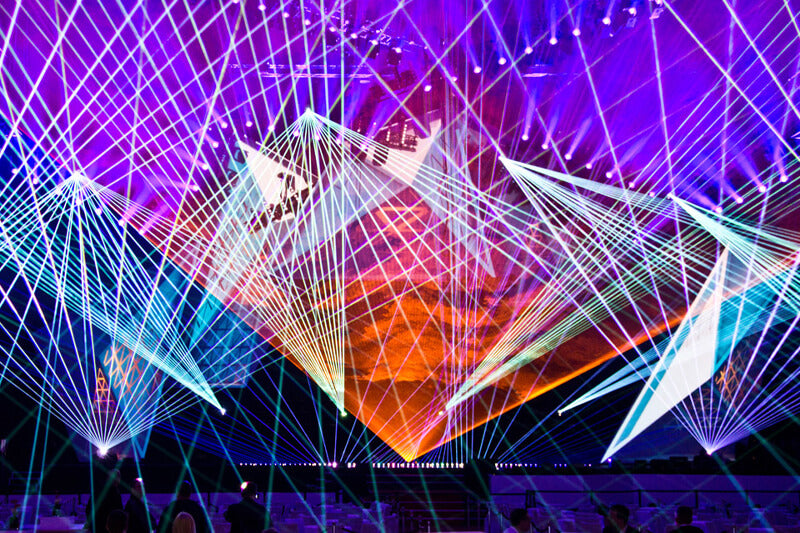

newfeel-zw-img2_4
Newfeel ZW Series
Newfeel ZW Series laser Dmx controller laser is a high-output six-hole R/G/B laser system that can create amazing red, green, and blue fat beam laser displays.
These lasers can rotate hypnotically with the beat of the music and have multiple automated programs. , And can be easily programmed and controlled via DMX.

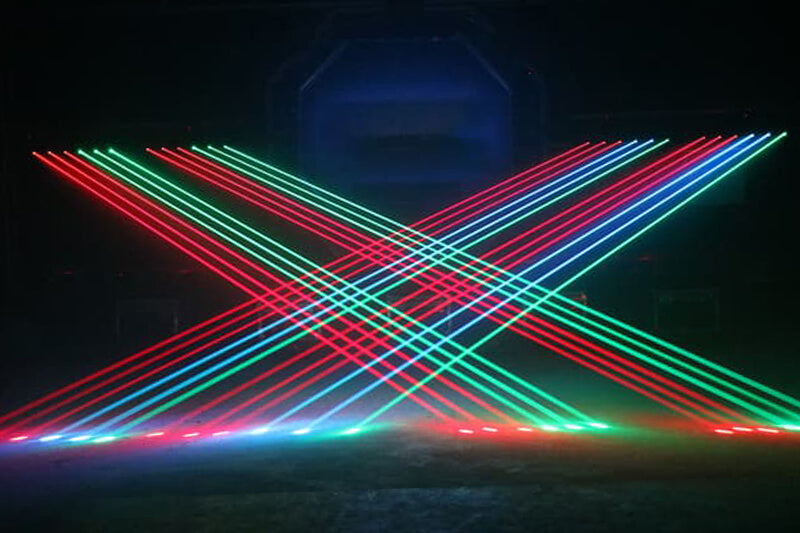

newfeel-zw-img2_3

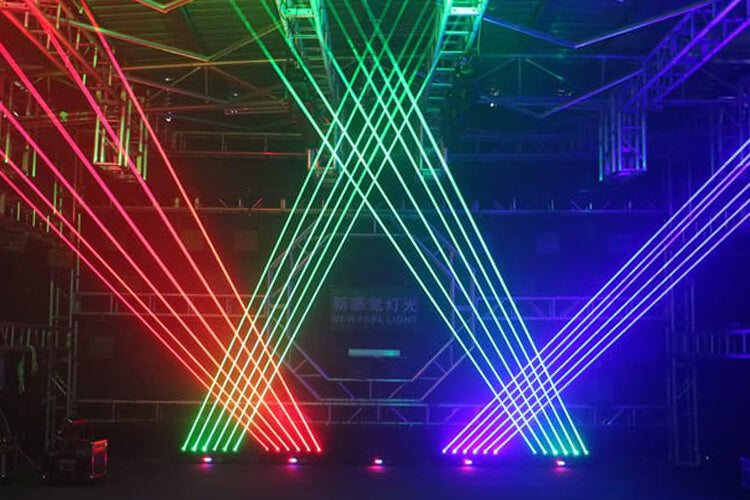

newfeel-zw-img2_1

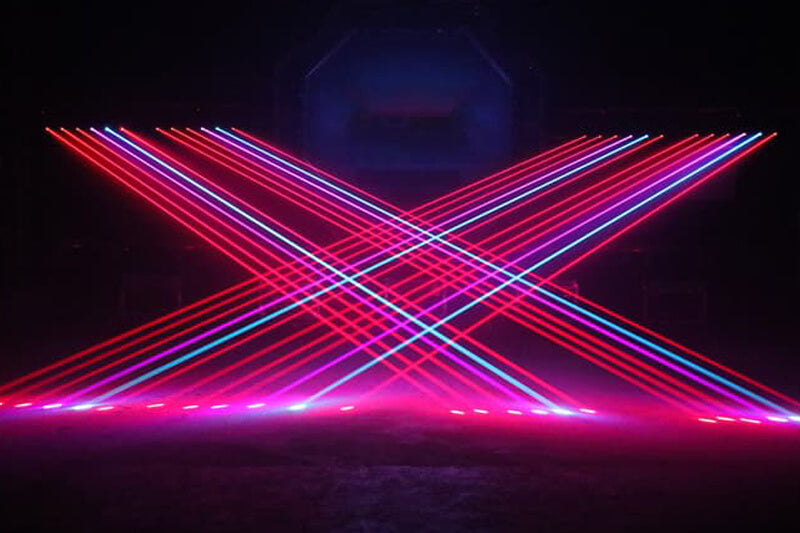

newfeel-zw-img2_2
Power supply AC90-240V,50-60Hz±10%
Rated power max 200W
Laser power RGB300mw*6 or R500mw*6 or G80mw*6 or B1000mw*6
Laser modulated signal analog or TTL modulation
Laser wavelength red 638±5nm, green 520±5nm, blue 450±5nm
Scanning angle Y axis 240°, X axis 140°
Control mode DMX512 signal control /self-walk/voice control/master-slave
Suitable places show，dacing hall, club, Bar and other enterntainment venues
Working environment indoor (-30~40 degrees)
Packing carton case
Which program do I need to control ZW Dmx laser bar light decoration for party manually.
Any DMX program should work. Just set the dip switch to the desired address.
Can you mount ZW Moving head laser party light unit on a portable stand? Are there issues if you mount it upside down to utilize the brackets?
from our experience with it you can mount it in any direction you want.
Can ZW series night club laser moving head stage light be used outdoors?
yes it can be used outdoors but if you live in a humidity area or are expecting rain either take it inside or make sure you cover it with some type of plastic or something that it will not be exposed to the moisture because that can damage the internal components of it but yes it can definitely be used outside.
Can anyone share the user manual with me? or share the dmx input channels for this fixture? trying to determine if it's what I want and can't find it.
Hi friend Please contact us by e-mail, we will send the product manual to you by e-mail.
