Item No.RGB-10WRGB-8WRGB-5W
Red LaserR3W/638nmR2W/638nmR1W/638nm
Green LaserG3W/520nmG1.8W/520nmG1.4W/520nm
Blue LaserB4W/455nm B4.4W/455nmB2.6W/455nm
Scanning system 40KPPS ±30°40KPPS ±30°40KPPS ±30°
Designed for Laser Enthusiasts – A Powerful Plug-and-Play Solution
The Newfeel SF1 club laser is purpose-built for laser enthusiasts and professionals alike. Whether you're a hobbyist, nightclub operator, or production specialist, this all-in-one unit is ideal for personal shows, indoor installations, outdoor events, or large-scale productions with DMX-controlled chases.
From sharp aerial beams to text, logos, graphics, and mapping capable, the SF1 delivers everything you need to create stunning laser shows straight out of the box.
Vibrant Full-Color Output with Razor-Sharp Beams
Equipped with a pure solid-state RGB laser source, the SF1 full-color laser offers vivid colors and natural white balance with exceptional durability.
Analog modulation ensures smooth fades and seamless transitions, enhancing visual impact.
With a divergence of less than 0.8 mrad and 40K high-speed galvos at ±30° scanning angle, you get sharp beams, crisp patterns, and clear text with less than 2% linear distortion.
Multiple Control Options for Any Show Environment
The SF1 programmable laser light supports ILDA (Pangolin FB3/FB4 compatible), DMX512, Auto Mode, Sound-Activated Mode, and mobile APP control （via Light Elf）
DMX laser built-in DMX system allows plug-and-play integration with any DMX lighting setup—no extra hardware or software required.
In sound mode, the laser syncs to music BPM for high-energy laser light show performances.
With the app, users can draw animations, customize text, and upload logos—perfect for crafting your own DIY laser light show experience.
Advanced Color Calibration & Intelligent Temperature Control
Featuring premium beam shaping and dot optimization, the SF1 club laser lights produce a cleaner, tighter beam with superior quality.
The built-in ETC smart temperature control system ensures low heat operation, minimizing light decay and extending the laser's lifespan. Whether used for beam shows, text displays, graphics, or laser mapping, the SF1 laser text projector delivers reliable performance, especially in high-end venues.
Safe & Reliable Laser Light with Key Lock and Emergency Stop
Enjoy stunning laser show lasers effects with complete peace of mind. This professional yet user-friendly programmable laser projector is designed for stage shows, and event use.
It features a secure key lock to prevent unauthorized activation, an optional emergency stop button for instant shutdown, and advanced one-beam protection that automatically turns off the light if a fault occurs. With flexible DMX, PC, or auto control options, it ensures safe, reliable, and easy operation—perfect for professionals.
Compact Build with Professional Silent-Grade Flight Case Protection
Engineered for mobility and efficiency, the SF1 laser projector features a compact body—32cm × 29cm × 17.5cm and only 6.45kg—making transport, setup, and rigging exceptionally easy for touring crews and event professionals. To ensure maximum protection on the road, the SF1 is paired with a professional silent-grade flight case, designed to reduce vibration, minimize transport noise, and safeguard the internal optical components throughout long-distance travel.
Whether you're touring nationwide or installing the SF1 in a fixed venue, its compact build and silent-grade flight case ensure reliable, damage-free operation and seamless integration into any professional workflow.
Model
SF1 Series
Power Supply
AC110V / 220V, 50-60Hz ±10%
Rated Power Consumption
less than 200W
Laser Power
RGB 10W/RGB 8W/RGB 5W
Laser Modulation
Analog Modulation
Laser Type
Solid-State Laser Module (High Stability & Long Lifespan)
Beam Size at Aperture
less than 6×7mm
Beam Divergence
less than 0.8mrad
Laser Wavelengths
Red 638±5nm, Green 520±5nm, Blue 455±5nm
Scanning System
40Kpps High-Speed Galvo Scanner
Scanning Angle
±30°, Input Signal ±5V, Linearity Distortion <2%
Control Modes
ILDA / DMX512 / Auto / Master-Slave/Bluetooth APP Control
System Features

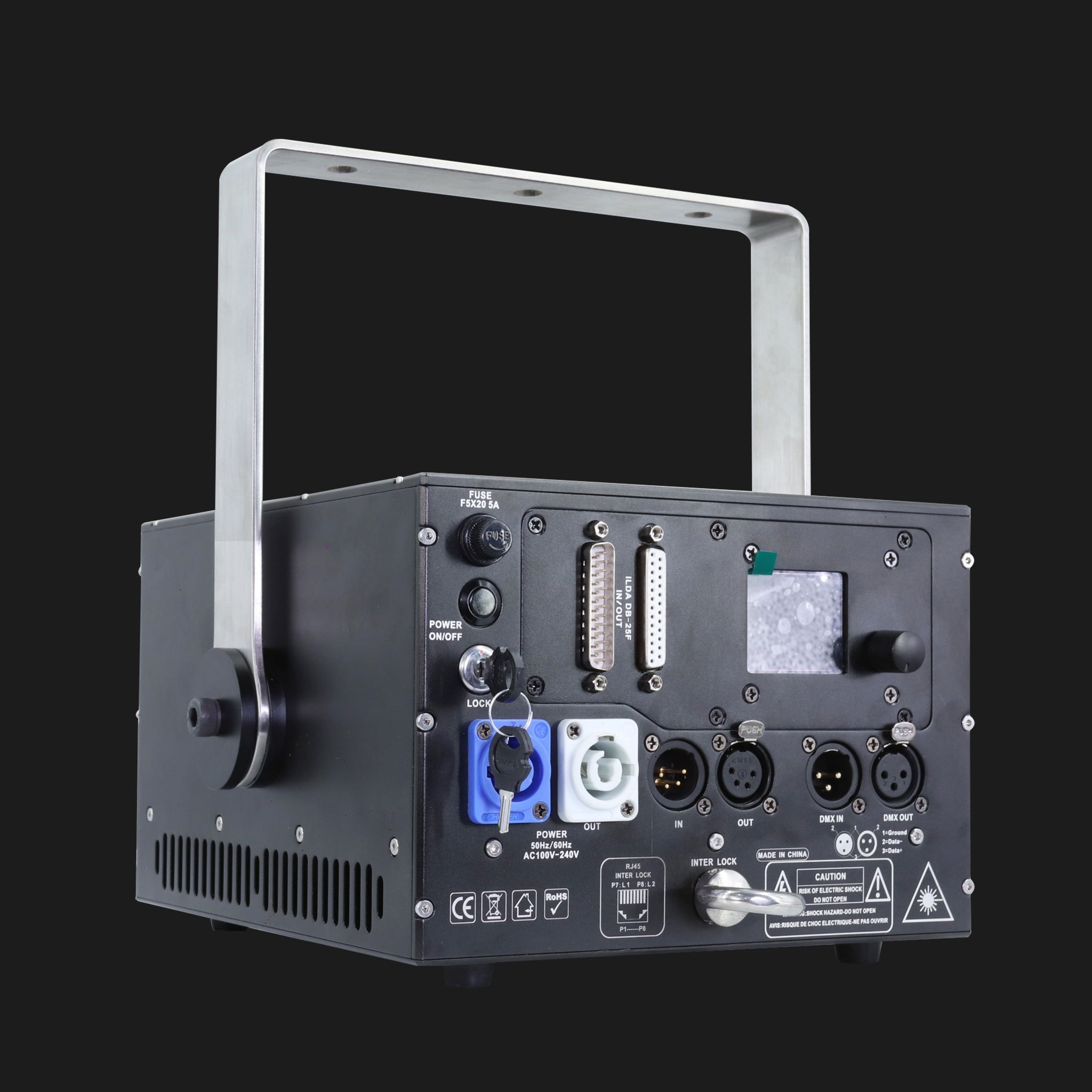

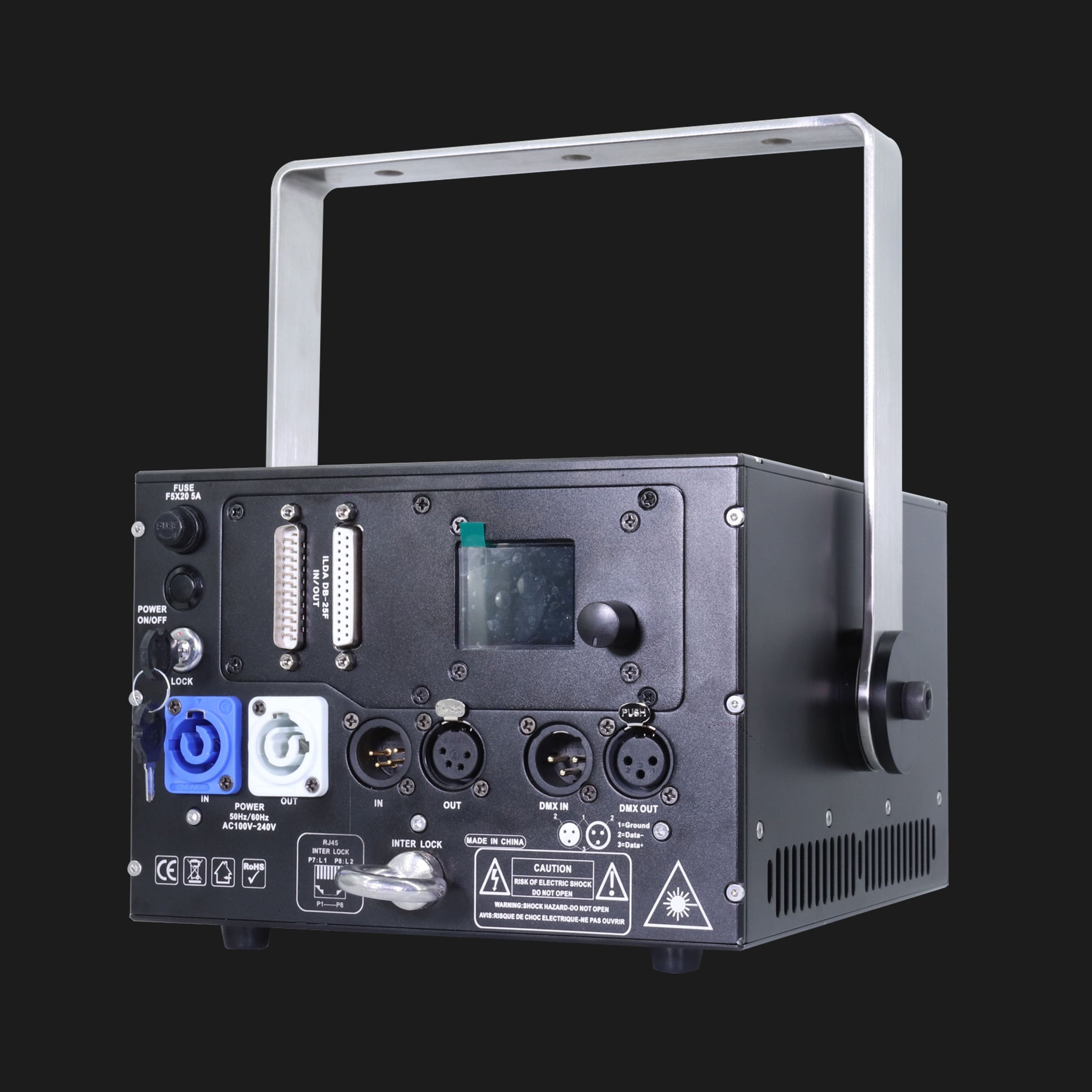

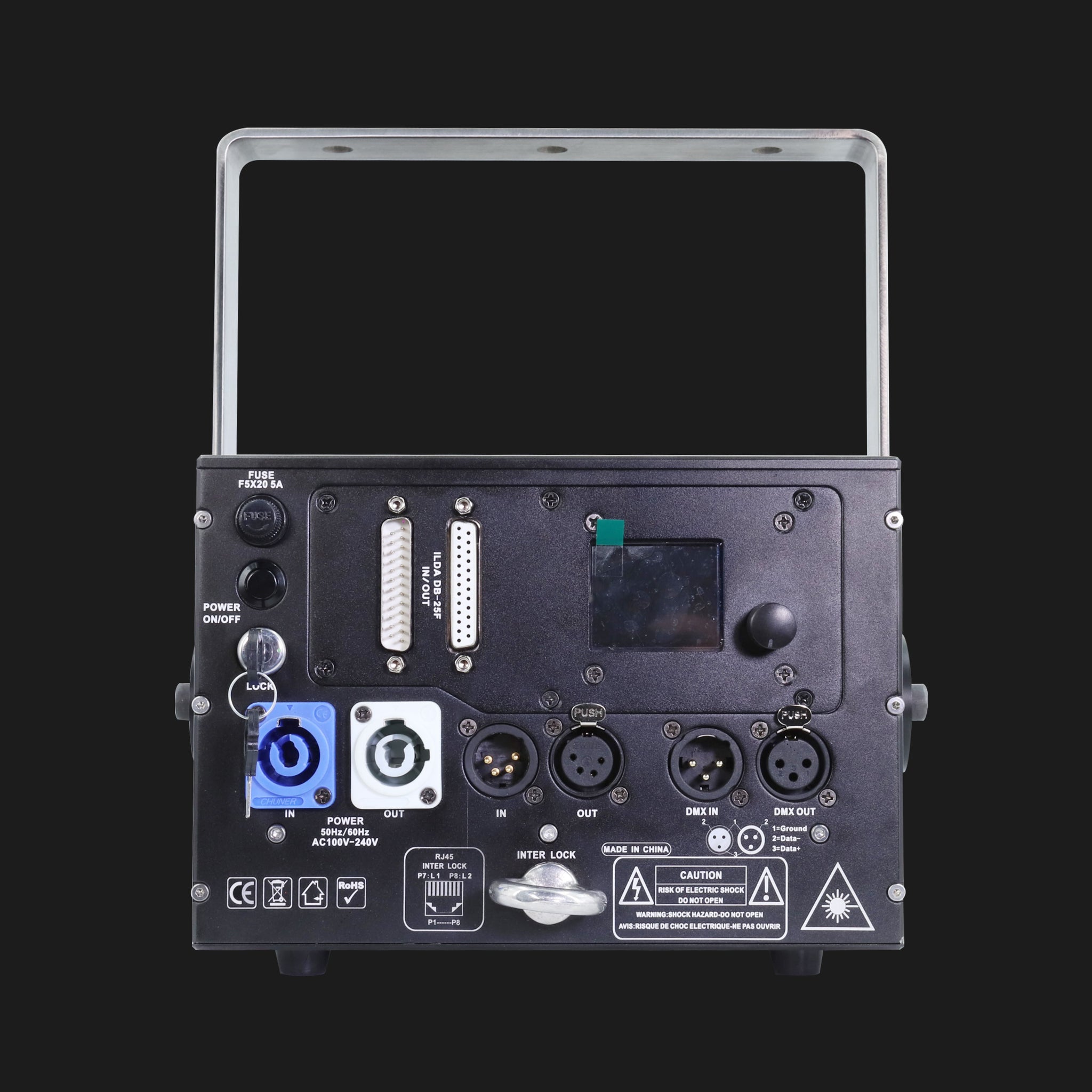

Adjust color channels (R, G, B), size/position/invert (X, Y), DMX in/out, ILDA in/out, power in/out, sound activation mode, digital display of DMX address and settings
Safety Features
Beam Fail Protection, Signal Loss Auto-Shutdown, E-Stop Safety button, Switchable DMX & ILDA Input
Application Scenarios
Cultural Tourism Lighting, Landmark Illumination, Mid-to-Large Stage Performances
Operating Environment
Indoor
IP Rating
IP20
Cooling System
Forced Air Cooling
Packing Method
Flight Case（with silent casters）
Q1: What types of events is the SF1 laser suitable for?
A1: The SF1 is ideal for DJ shows, clubs, stage performances, and large-scale indoor or outdoor events. It’s also widely used in cultural tourism shows, outdoor landmarks, water fountain projects, electronic music festivals, and even mountain projection advertising.
Q2: What control methods does the SF1 support?
A2: The SF1 supports ILDA (D-Sub 25), DMX512, auto mode, sound-activated mode, master/slave, and mobile APP control (Light Elf). It offers full flexibility for professional laser show programming.
Q3: How accurate are the laser beams?
A3: With a 35K scanning system and ±30° scanning angle, the SF1 delivers fast, precise animations. The beam divergence is < 0.8 mrad, and output spot size is < 6.5mm, ensuring sharp, clean, and vivid laser graphics.
Q4: Should I choose the waterproof version for bar installation?
A4:Yes, if your budget is enough, we recommend the IP65 waterproof version for smoky environments like bars. It prevents oil and smoke from fog machines from entering the laser housing, enhancing longevity and reducing maintenance costs.
Q5: What does less than 1mrad beam divergence mean for performance?
A5: A divergence of less than 1mrad means the laser beam is sharper and more concentrated over long distances. This results in more vivid colors, stable beams, and clearer projections for text, graphics, and effects.
Q6: Is the SF1 compatible with laser show software?
A6: Absolutely. SF1 supports ILDA control and is fully compatible with Pangolin FB3/FB4. It also features Bluetooth APP control for creating your own DIY laser shows. For built-in FB3/FB4 versions, please contact us before ordering.
