Item No. SJ-5705B
Red Laser Red 638±5nm
Green Laser Green 520±5nm
Blue Laser Blue 455±5nm
Scanning system 20kpps

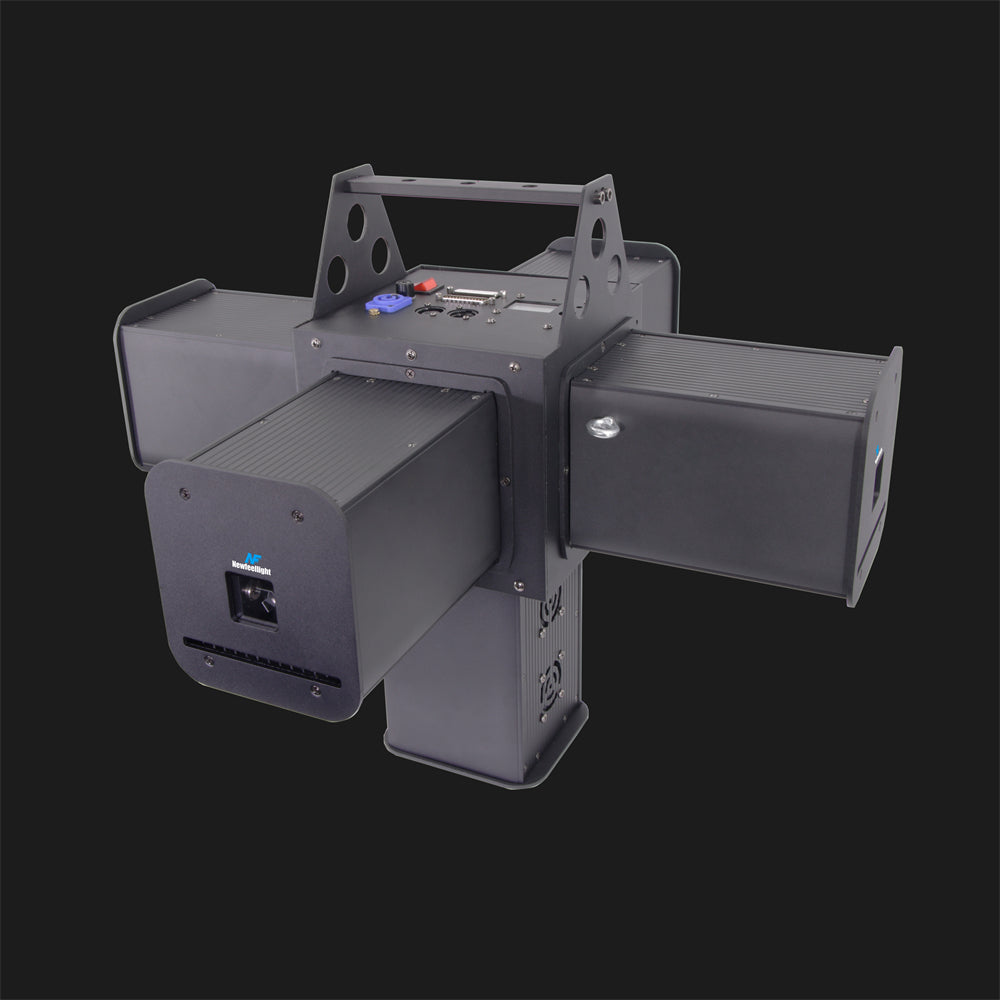

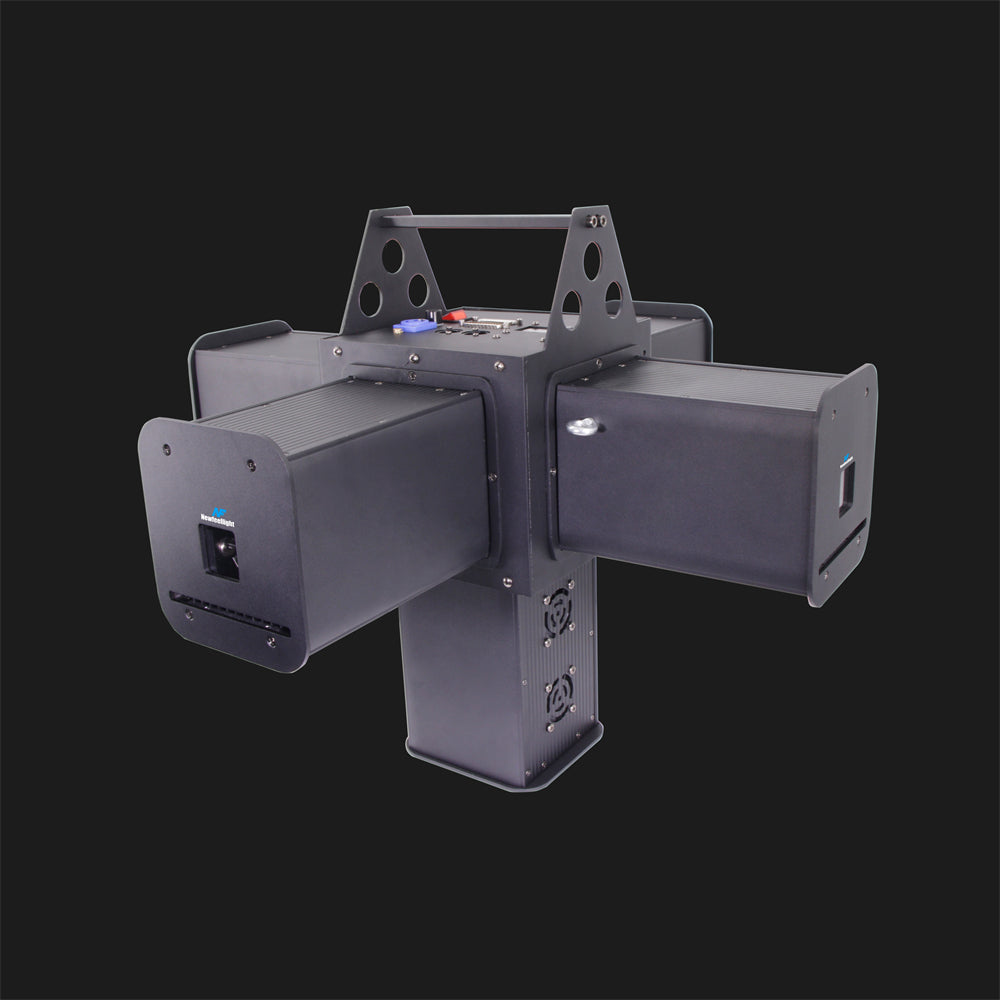

Advanced 5-Head RGB Laser Beam Light with Precision Lifting System
This high-performance laser beam of light combines five powerful RGB laser heads (5W each) with a robust 450W winch system, enabling synchronized vertical movement and vivid laser effects.
Built with imported semiconductor solid-state lasers, this laser light machine is engineered for professional use in high-end stage productions and fixed installations.
Exceptional Beam Quality & Professional Laser Stage Performance
Each laser head delivers sharp, focused beams with <6×5mm aperture size and beam divergence under 1.3mrad—ideal for high-definition laser stage lights. Featuring precise wavelengths (638nm red, 520nm green, 455nm blue), the system produces stunning RGB laser colors with superior blending and clarity for immersive light shows.
Laser Scanning Technology & Multiple Modulation Modes
Designed for smooth pattern rendering, this laser show system features five high-speed 20K KPPS scanning units.
It supports both analog and TTL modulation, enabling creators to produce highly dynamic graphics and animations with brilliant laser effects, whether in live concerts, clubs, or fixed installations.
Universal Control Compatibility With ILDA and DMX Laser Systems
This unit is fully compatible with ILDA signal input and DMX Laser control protocols.
It also integrates smoothly with major control software and consoles like Pangolin, Tiger Touch, Pearl, and MA Lighting. Whether you're programming a large-scale show or syncing to audio, the laser stage lights respond with precision and ease.
Efficient Cooling and Essential Safety Features
The built-in forced-air cooling system ensures reliable performance during extended use, helping extend the life of this professional-grade laser light machine.
Safety is prioritized with beam interruption protection and automatic shut-off when signal is lost, making it a trusted solution in demanding event environments.
Ideal Lazer Lights for Clubs, Concerts, and Indoor Shows
Ideal Lazer Lights for Clubs, Concerts, and Indoor Shows
Whether used in dance halls, nightclubs, or immersive show spaces, these high-powered lazer lights provide dynamic movement and color-rich laser effects.

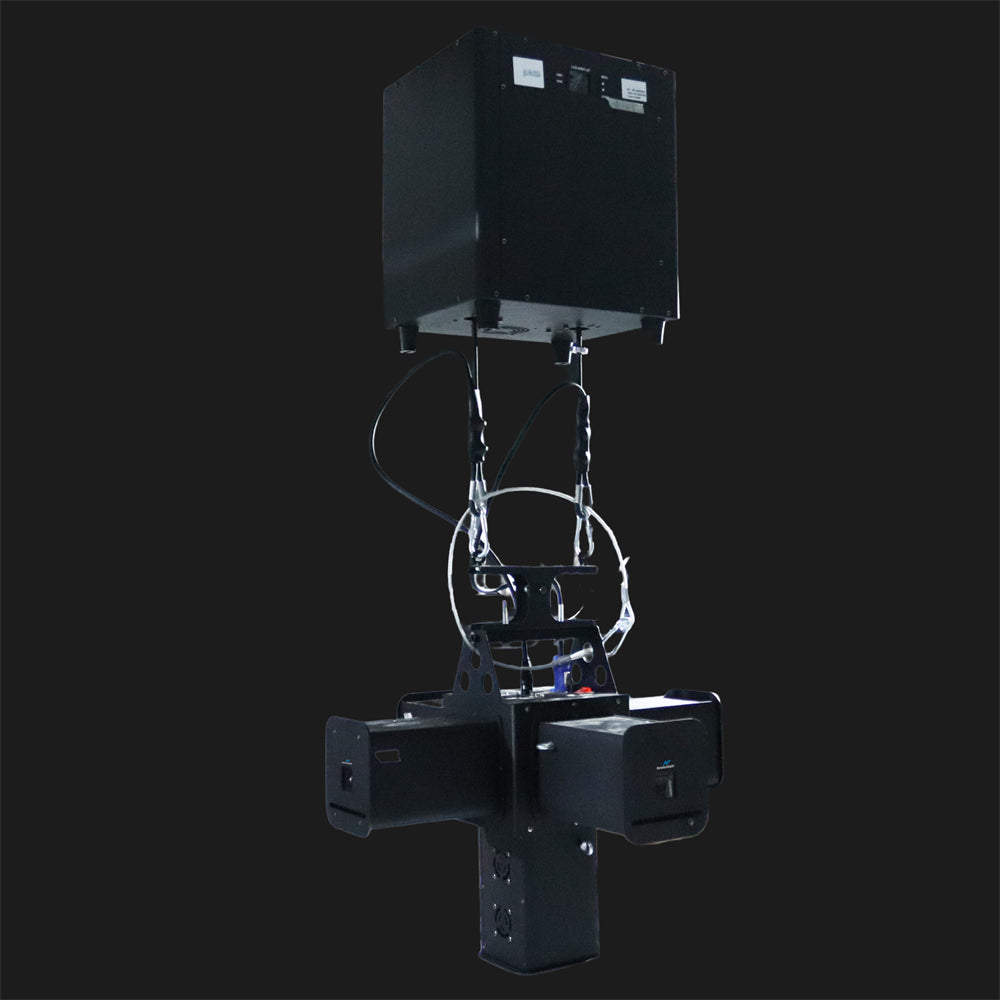

The customizable 4–6 meter lifting system stroke adds a vertical dimension rarely found in standard laser beam lights, making this system the perfect centerpiece for any advanced laser show system setup.
Model
SJ-5705B
Power supply
AC110/220V, 50-60Hz±10%
Rated power
max 750W
Laser power
RGB5W*5
Laser modulated signal
analog or TTL modulation
Type of laser
imported semiconductor solid-state laser
Beam size at the aperture
Less than 6*5mm
Beam divergence
1.3mrad
Laser wavelength
red 638±5nm, green 520±5nm, blue 455±5nm
Scanning system
20K KPPS high speed scanning*5pcs
Control mode
international standard ILDA control /DMX512 signal control /self-walk/master-slave
Channel
lifting 4CH + laser 23CH*5
Control interface
International DXM512 can connect with American Pangolin laser software and tiger, pearl, MA controller,etc.
Safety function
one beam protection, no signal to close the light, etc
Suitable places
dacing hall, club, show and other enterntainment venues
Working environment
indoor
Packing
carton case
